Описание
Характеристики
Информация для заказа
- Максимальное разрешение 2 Мпикс
- Моторизированный объектив 2.8~12 мм
- ИК-подсветка дальностью до 50 м
- Встроенный микрофон
-
· Матрица 1/2.7", progressive scan, CMOS
· Разрешение 1920×1080 (30 к/с)
· Объектив 2.8 ~ 12 мм, угол обзора 108.05°~ 32.59°
· ИК-подсветка до 50 м
· Встроенный микрофон
· Поддерживает Micro SD до 128 Гб
· 2D/3D DNR, WDR, антитуман
· Степень защиты IP67 -

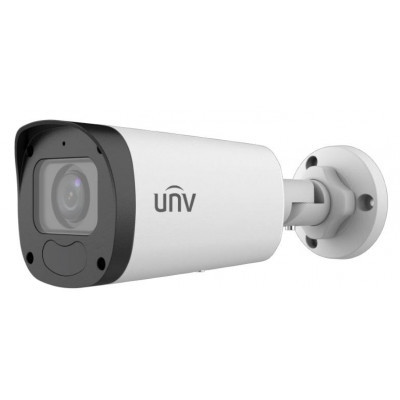

IPC2322LB-ADZK-G Camera Sensor 1/2.7", 2.0 megapixel, progressive scan, CMOS Minimum Illumination Colour: 0.005Lux (F1.6, AGC ON)
0Lux with IR onDay/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment angle Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° S/N >52dB WDR 120dB Lens Lens Type 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens Lens Mount Φ14 Angle of View (H) 108.05°~ 32.59° Angle of View (V) 56.81°~ 18.36° Angle of View (O) 111.91°~36.53° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8 42 16.8 8.4 4.2 12 180 72 36 18 Illuminator IR Range Up to 50m (164ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile, MJPEG Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;Video Bit Rate 128 Kbps~6144 kbps U-code Supported 9:16 Corridor Mode Supported OSD Up to 4 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser Digital Noise Reduction 2D/3D DNR Smart IR Supported Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Supported BLC Supported Defog Digital Defog Audio Audio Compression G.711 Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 128GB Network Storage ANR,NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK User/Host Up to 32 users. 2 user levels: administrator and common user Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF Client EZStation
EZView
EZLiveWeb Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ Interface Network 1 * RJ45 10M/100M Base-TX Ethernet Built-in Mic Supported Certification EMC FCC: FCC Part 15 Safety CE: EN 60950-1
UL: UL60950-1
IEC 60950-1General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.5W Power Interface Ø 5.5mm coaxial power plug Dimensions (L × W × H) 206 × 74 × 74mm (8.1” × 2.9” × 2.9”) Weight 0.54kg (1.19lb) Material metal Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 6KV Reset Button Supported Ingress Protection Ingression protection: IP67
Основные | |
---|---|
Цвет | Белый |
Производитель | Uniview |
Гарантийный срок | 36 мес |
Страна производитель | Китай |
Форматы записи | SD |
Фокусное расстояние min | 2.8 мм |
- Цена: 60 700 ₸
