Описание
Характеристики
Информация для заказа

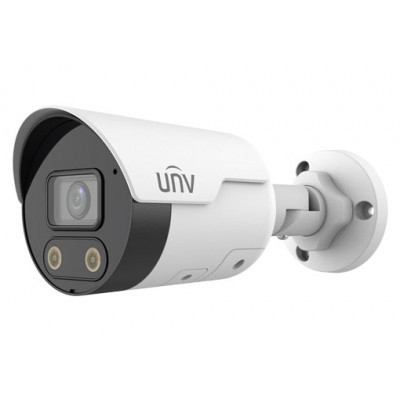

- Максимальное разрешение 4 Мпикс
- Фиксированный объектив 2.8 мм
- ИК-подсветка дальностью 30 м
- Угол обзора: 112.9°
-
· Матрица 1/3", progressive scan, CMOS
· Разрешение 2688×1520 (25 к/с)
· Объектив 2.8 мм, угол обзора 112.9°
· ИК-подсветка до 30 м, белый свет до 30 м, ColorHunter
· Встроенный микрофон и динамик, двусторонняя аудиосвязь
· Интеллектуальные функции
· Поддерживает Micro SD до 128 Гб
· 2D/3D DNR, WDR, антитуман
· Степень защиты IP67IPC2124LE-ADF28KMC-WL IPC2124LE-ADF40KMC-WL Camera Sensor 1/3", 4.0 megapixel, progressive scan, CMOS Minimum Illumination Colour: 0.003Lux ( F1.6, AGC ON)
0Lux with lightDay/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° S/N >52dB WDR 120dB Lens Lens Type 2.8mm and 4.0mm @1.6, Fixed-focal Lens Mount M12 Field of View (H) 112.9° 91.2° Field of View (V) 59.1° 47.9° Field of View (D) 121.2° 95.9° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8 63.0 25.2 12.6 6.3 4.0 90.0 36.0 18.0 9.0 Illuminator IR Range Up to 30m (98ft) IR range White Light Range Up to 30m (98ft) white light range Wavelength IR:850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 Code Profile Baseline profile, Main profile, High profile Frame Rate Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;Video Bit Rate 128 Kbps~16 Mbps U-code Supported 9:16 Corridor Mode Supported
Up to 4 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser Digital Noise Reduction 2D/3D DNR Smart IR Supported Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Supported BLC Supported Defog Digital Defog Events Basic Detection Cross line, intrusion(based on human body detection) motion detection, tampering alarm, audio detection General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication Audio Audio Compression G.711 Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 128GB Network Storage ANR, NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK User/Host Up to 32 users. 2 user levels: administrator and common user Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF Client EZStation
EZView
EZLiveWeb Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ Interface Network 1 * RJ45 10M/100M Base-TX Ethernet Built-in Mic Supported Built-in Speaker Supported Certification EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 9.0W Power Interface Ø 5.5mm coaxial power plug Dimensions(L × W × H) 191×75×74mm (7.5”×2.9”×2.9”) Weight 0.41kg (0.90lb) Material Metal Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 4KV Reset Button N/A .
-
Основные | |
---|---|
Цвет | Белый |
Производитель | Uniview |
Гарантийный срок | 36 мес |
Страна производитель | Китай |
Форматы записи | SD |
Фокусное расстояние min | 2.8 мм |
- Цена: 46 000 ₸
